Thinking about a carport, garden shed, or small home addition? The roof must be light and affordable. Simple small roof truss designs meet those targets better than improvised rafters. They arrive cut to length, marked, and ready to install, saving hours on a ladder.
In this guide you will learn how these compact assemblies work, which shapes suit tight footprints, and the checks you should make before any lumber leaves the yard. We will also compare timber frames with factory-built metal plate options and weigh them against stick framing. By the end you will know which option fits your budget and skill level.
What Makes a Simple Roof Truss Design

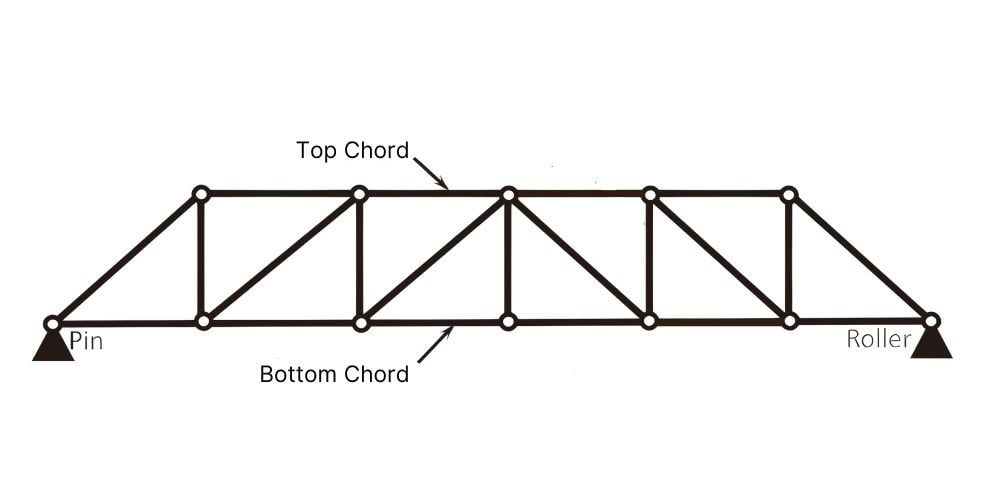

Fewer joints mean lighter weight and fast assembly. Each member is cut square, so you avoid tricky compound angles. The whole unit sits flat on the wall plate and braces the frame as soon as it is fixed. Because the force path is direct, a small truss often uses 2×4 or 2×6 lumber, which keeps design fees low and shortens lead times for DIY schedules.
Types of Trusses for Small Roofs
Small projects still offer choice. A king-post truss, with one vertical web, covers narrow sheds and porches. A queen-post adds a second vertical and stretches to about 26 ft. A mono truss, using a single top chord, matches lean-to additions. Attic trusses raise the ridge high enough for a small room.
For load charts on each form, see our guide to different types of trusses. In most backyards, king-post, queen-post, and mono do the job. Ask the supplier to model local snow and wind so any extra webs are pressed in the factory, not cobbled together on the ladder.
Wooden Roof Trusses vs. Manufactured Options

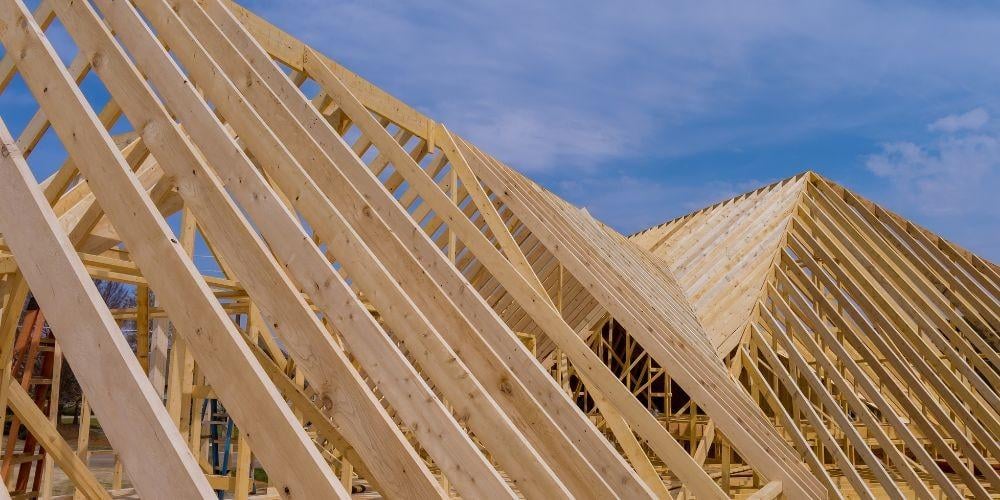

Most small roofs still use wooden roof trusses cut from kiln-dried pine or spruce. Timber matches everyday framing lumber and costs less per foot than steel. It also insulates and dampens sound.
Manufactured variants include plated timber—same wood but factory-pressed connector plates—and light-gauge steel. Steel spans farther yet needs special screws and careful insulation to stop condensation.
If you want numbers on weight and energy savings, read our note on the benefits of wooden roof trusses. For a yard shed, plated timber almost always wins on cost and ease of trimming on site.
Key Design Considerations Before You Build
Even the smallest trusses for roof jobs must meet code. First note the clear span—outside wall to outside wall—then pick a roof pitch that suits snow and rain. Your supplier will enter both numbers into design software and size the chords.
Give each truss at least 90 mm (3½ in) of bearing on the wall plate. If sitting on brick, add a treated timber pad. Ask for local wind and snow checks; they often sharpen bottom chord size by one grade.
Plan access. A 22-ft truss is light but awkward. Clear a straight path from truck to build site and set sawhorses so bundles stay flat.
Finally, think ahead: run any wiring or vents before sheathing. Drilling plates later weakens them and voids warranties.

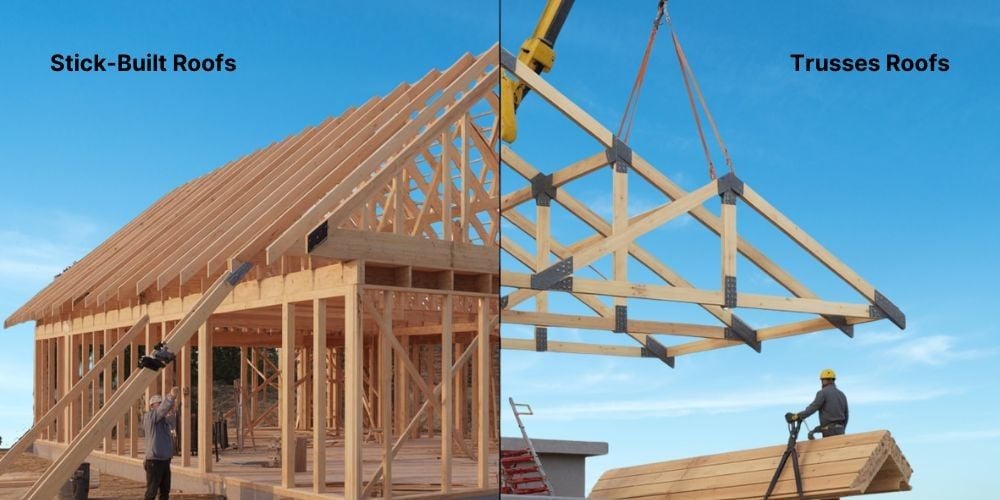

Trusses vs. Stick-Built Roofs: Which Is Better for Small Projects?
Stick framing cuts each rafter on site. A truss arrives as a tested unit. That single difference saves the biggest resource on a small job—time. Two workers can set and brace a line of trusses in one morning, sheet by lunch, and keep water out before nightfall.
Trusses also spread loads so the walls carry them evenly. Stick roofs allow an open ceiling but demand careful collar ties and ridge boards to stop spread.
To weigh the trade-offs in detail visit our review of trusses vs stick-built roofs. For most sheds and carports, lower labor and predictable cost tip the scale to trusses.
Practical Uses for Simple Small Trusses
The market for small truss designs keeps growing. Homeowners add lean-to greenhouses, playhouse roofs, and porch covers. Contractors like a simple roof truss for shed conversions where the floor plan is wide but shallow. Event companies keep mono trusses that bolt to shipping containers for pop-up kiosks.
Farmers favor king-post sets for pump houses because the clear span leaves room for tanks and tools. Row-house renovations use attic trusses to carve out lofts under city height limits. In each case the same rule applies: lighter parts means easier lifting and safer work.
Choosing the Right Truss for Your Project
Match shape to need. A plain king-post covers most sheds. Attic trusses suit tiny houses that need loft beds. Mono trusses clear camper vans under carports.
Pick material for climate. Treated lumber handles termites; galvanized steel handles salt spray. Check lead times: small runs of timber often ship in a week, steel in a month.
Think about lifting gear. Two people can raise an 18-ft timber truss with ladders and a snipe pole. Heavier sets need a telehandler and steady ground. Order extra hurricane ties and bracing so work does not stall mid-day.
Conclusion
Simple small roof trusses add strength, cut build time, and remove guesswork from home projects. By choosing the right shape, checking loads, and planning delivery you can set a roof in a weekend and enjoy a neat interior line.
